Maxim公司的智能襯衫是一種新的監測生命體征的襯衫,集成了心電傳感器技術,復雜的信號處理技術,溫度傳感器,運動傳感器,超低功耗單片機和RF無線技術,在一件T恤衫內實現三導聯心電圖,體溫測量和運動檢測,大大降低了醫療費用.
Wearable electronics have the potential to improve lifestyles, from the active fitness enthusiast to those with chronic illnesses who need round-the-clock vital signs monitoring. The latest Fit Shirt demonstrates our wellness platform of products designed specifically for wearable electronics. Sensors built into the shirt gather data on heart rate, oxygen saturation, ECG, motion, respiration and body temperature. The on- board microcontroller delivers results to a tablet via Bluetooth, and advanced power management allows the battery to run for weeks at a time.
The "Fit" vital signs monitoring shirt allows medical professionals and fitness enthusiasts to easily obtain frequent and less costly vital sign measurements. The highly integrated shirt incorporates a 3-lead electrocardiogram (ECG), and also measures body temperature and motion. All diagnostic tools are packaged in a shirt that is comfortable to wear.

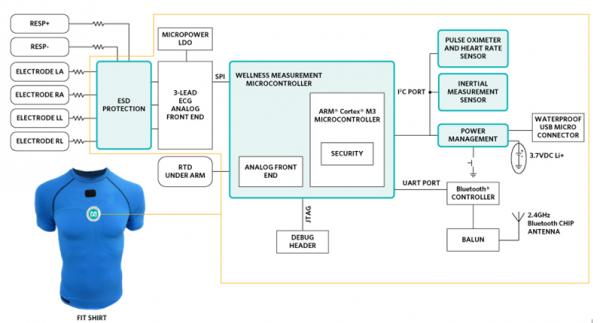

圖1.智能襯衫框圖
|
智能襯衫相關元器件:
|
|
MAX3202E
|
Low-Capacitance, 2/3/4/6-Channel, ±15kV ESD-Protection Arrays for High-Speed Data Interfaces
|
|
MAX3203E
|
Low-Capacitance, 2/3/4/6-Channel, ±15kV ESD-Protection Arrays for High-Speed Data Interfaces
|
|
MAX3204E
|
Low-Capacitance, 2/3/4/6-Channel, ±15kV ESD-Protection Arrays for High-Speed Data Interfaces
|
|
MAX6655
|
Dual Remote/Local Temperature Sensors and Four-Channel Voltage Monitors
|
|
MAX6656
|
Dual Remote/Local Temperature Sensors and Four-Channel Voltage Monitors
|
|
MAX8671X
|
PMIC with Integrated Charger and Smart Power Selector for Handheld Devices
|
|
MAXQ612
|
16-Bit Microcontrollers with Infrared Module and Optional USB
|
|
MAXQ622
|
16-Bit Microcontrollers with Infrared Module and Optional USB
|
|
